Note: Requires the Waveband audio adapter for Harris XL-45 radio.

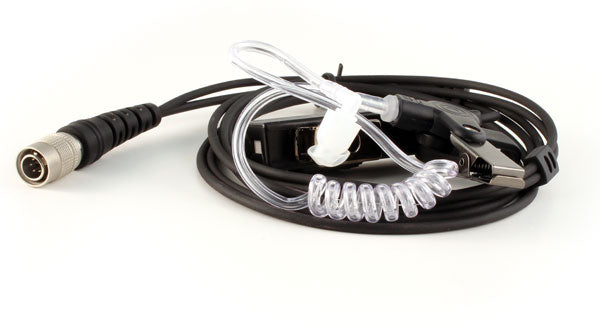

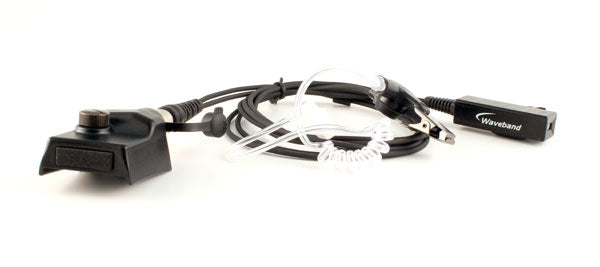

This Hirose connection two-wire surveillance kit makes it easy to attach and remove from your radio. One of the wires holds the Knowles noise-canceling microphone and easy to activate push to talk button. The second wire includes the clear acoustic tube earpiece with a mushroom style ear tip. (Alternate ear tip styles sold separately).

CABLING
Sheathing: Polyurethane
Cabling: Diameter 4.5mm, Earphone cable 3.0mm
SPEAKER
Impedance: 250 +-50 Ohms
SPL: 97 +-3dB
MICROPHONE
Type: Piezoelectric Accelerometer Microphone
Impedance: 250 +- 50 Ohm
Sensitivity: 97 +- 3dB
MECHANICAL
Axial Pull at Microphone: 15lbs
Axial Pull at PTT: 35lbs
Axial Pull at UDC: 35lbs
ENVIRONMENTAL
Operating Temperature: -30 to +75 Celsius
Storage Temperature: -40 to +85 Celsius
RoHS CompliantGuarantee
36-Months against manufacturer’s defect

Download datasheet
