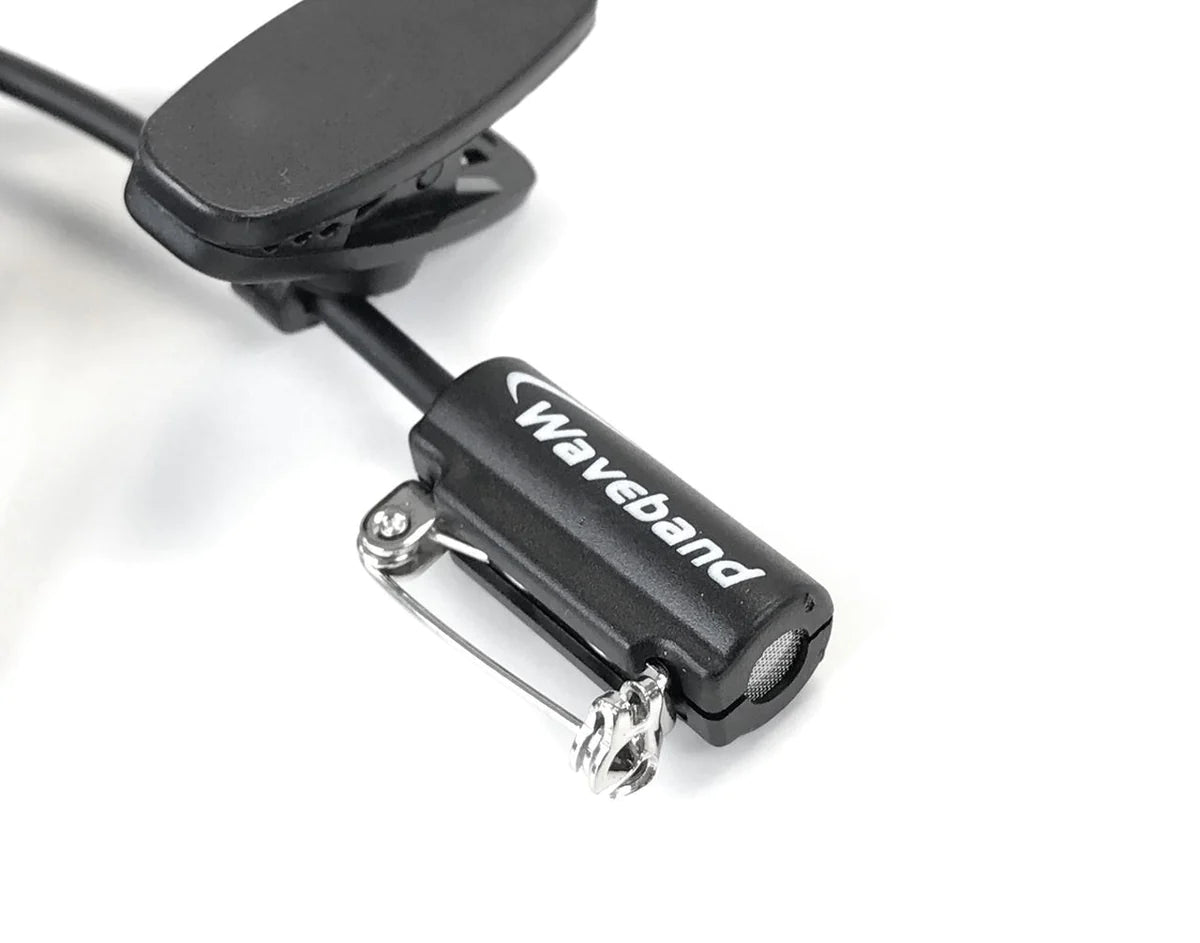

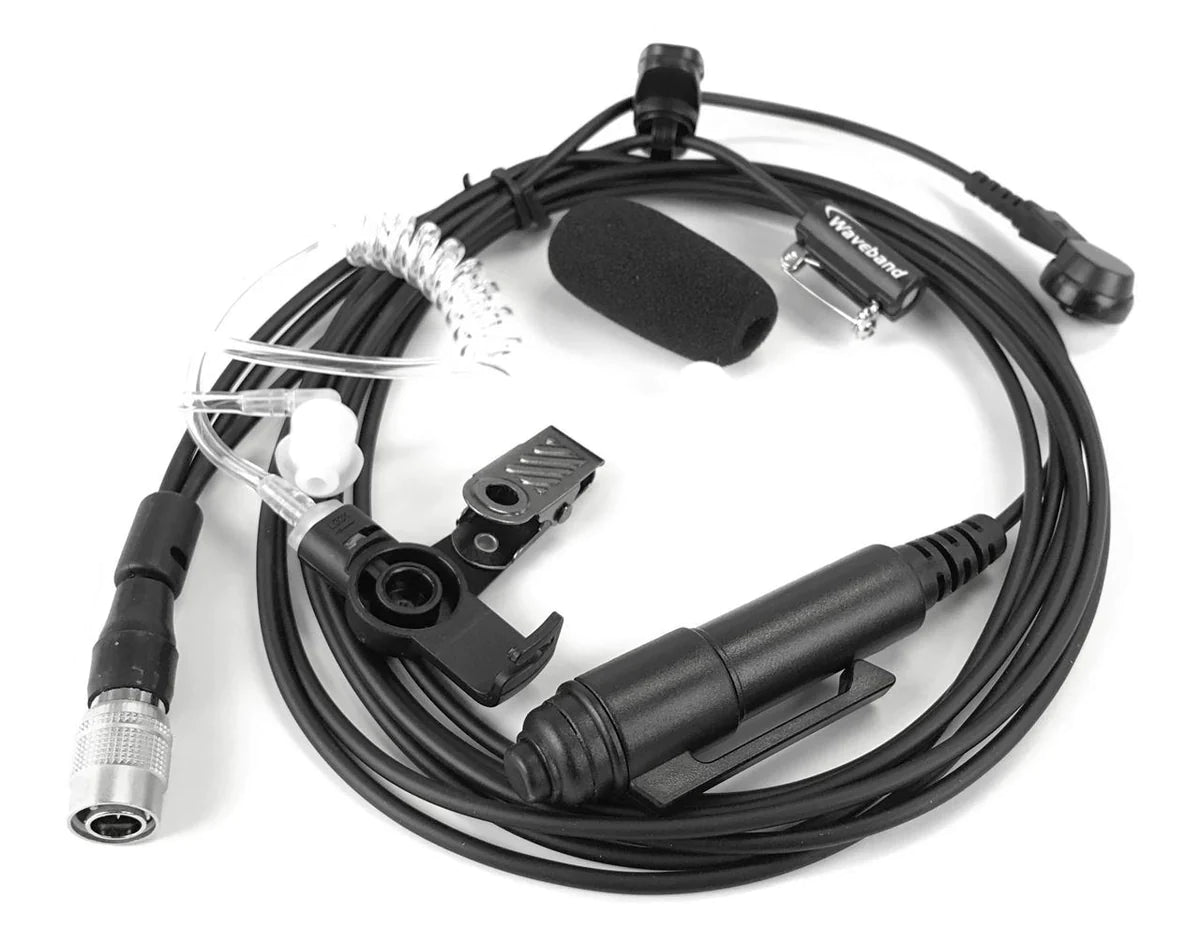

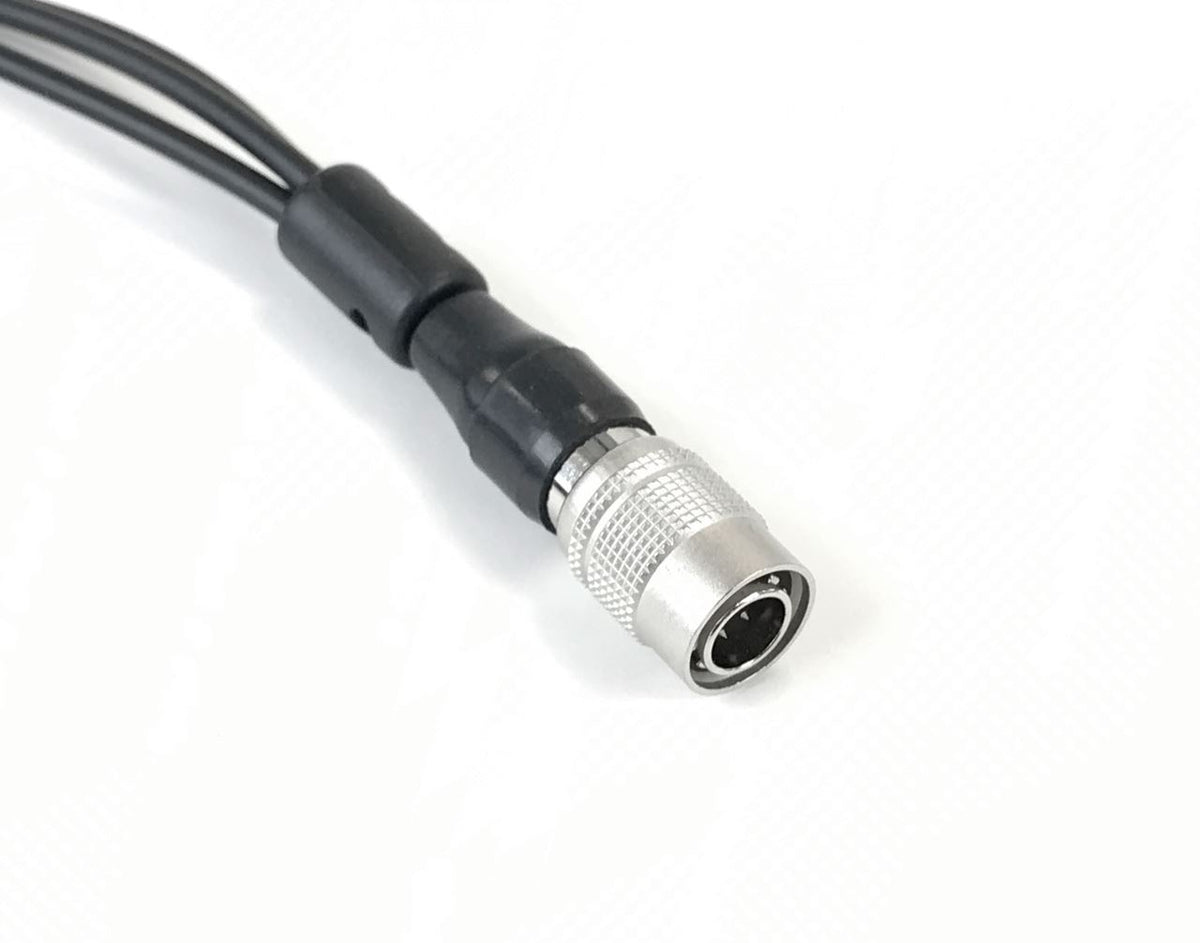

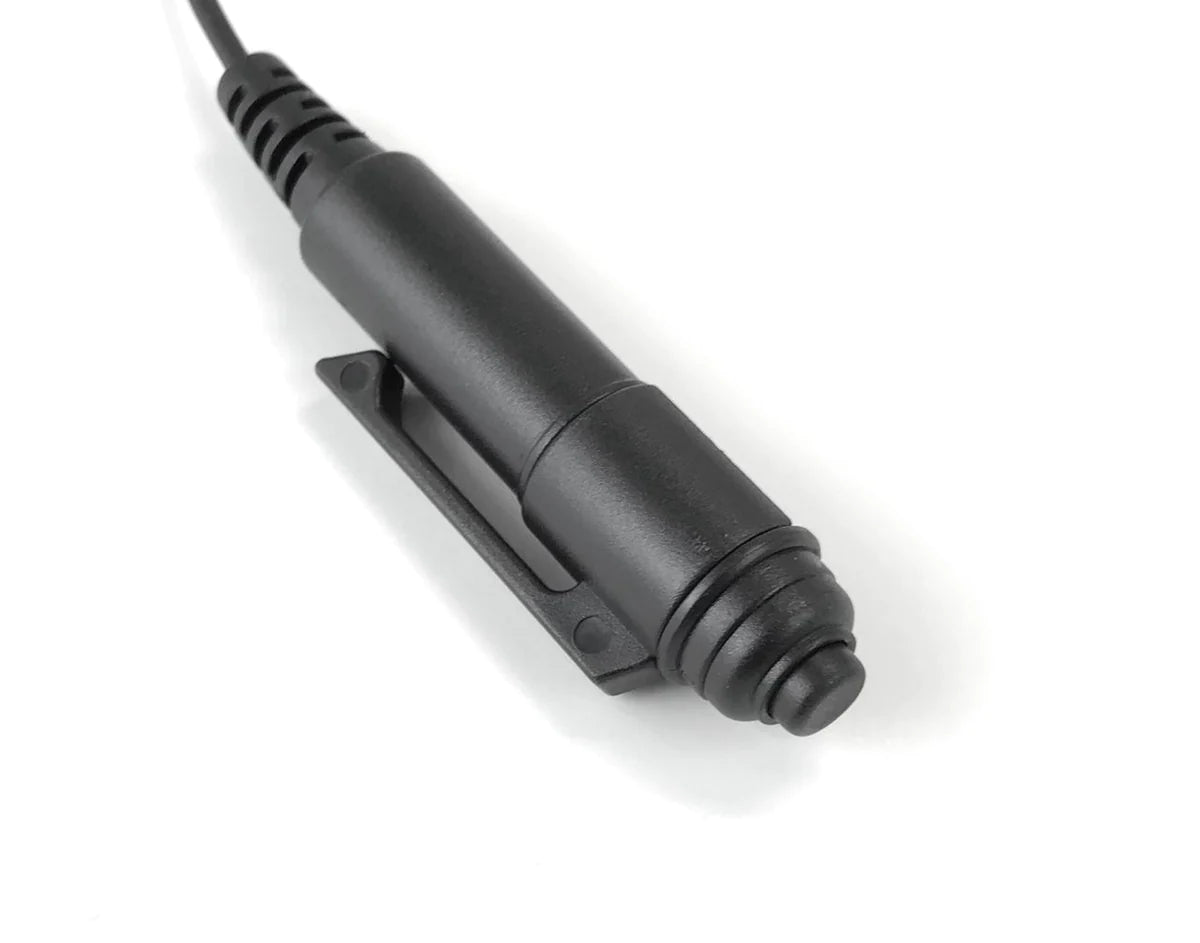

3-Wire black Surveillance Kit discreet communications. For Motorola XTS 3000/5000 Motorola XTS 1500/2500, Motorola HT 1000/MTS2000 & Ef Johnson Series Radios. Features kevlar reinforced cable, premium microphone, quick disconnect clear acoustical tube, ear bud, Hirose connector and barrell style PTT. Ring Style PTT also available upon request. Fully compatible to Motorola ZMMN6031A.

AUDIO LIMITER
Conforms with Occupational Safety and Health Administration (OSHA) regulations. Electronically limits audio to the users ear to a safe maximum of 90dB to prevent hearing damage. Kits also available with volume control to allow users to temporarily exceed 90dB when in louder environments. Most low cost kits far exceed safe audio levels, unknowingly
causing hearing damage.

CABLING
Sheathing: Polyurethane
Cabling: Diameter 4.5mm, Earphone cable 3.0mm
SPEAKER
Impedance: 250 +-50 Ohms
SPL: 97 +-3dB

MICROPHONE
Type: Piezoelectric Accelerometer Microphone
Impedance: 250 +- 50 Ohm
Sensitivity: 97 +- 3dB

MECHANICAL
Axial Pull at Microphone: 15lbs
Axial Pull at PTT: 35lbs
Axial Pull at UDC: 35lbs

ENVIRONMENTAL
Operating Temperature: -30 to +75 Celsius
Storage Temperature: -40 to +85 Celsius
RoHS Compliant

Guarantee
12-Months against manufacturer’s defect

Download datasheet
