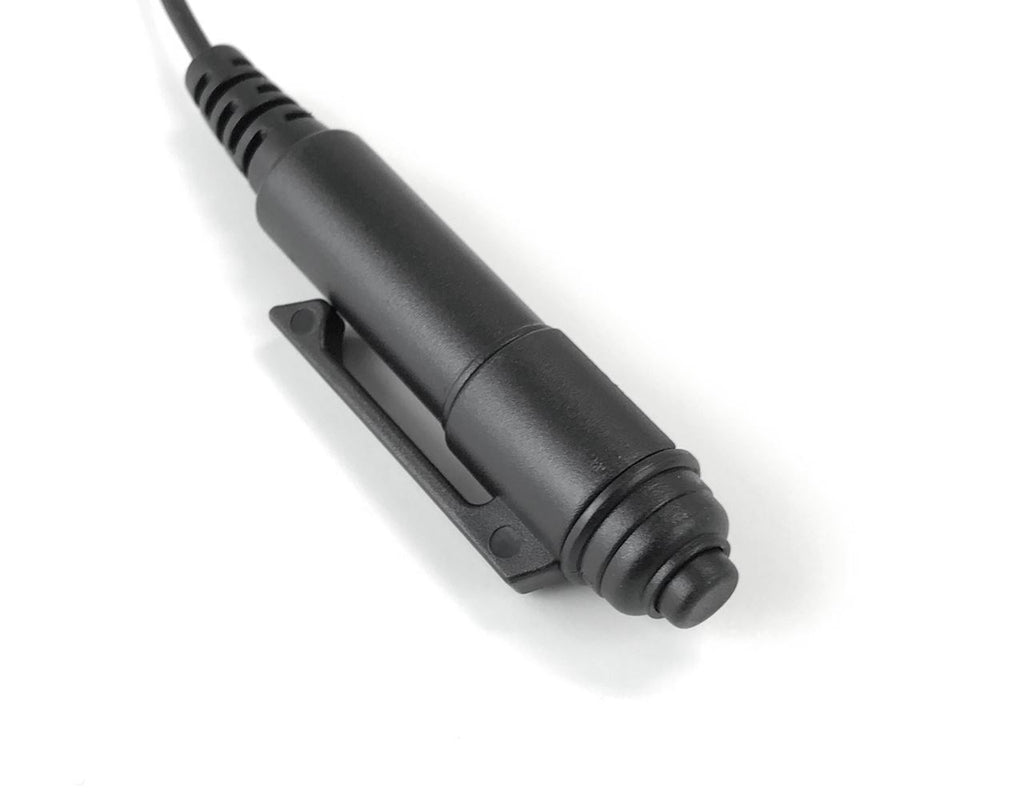

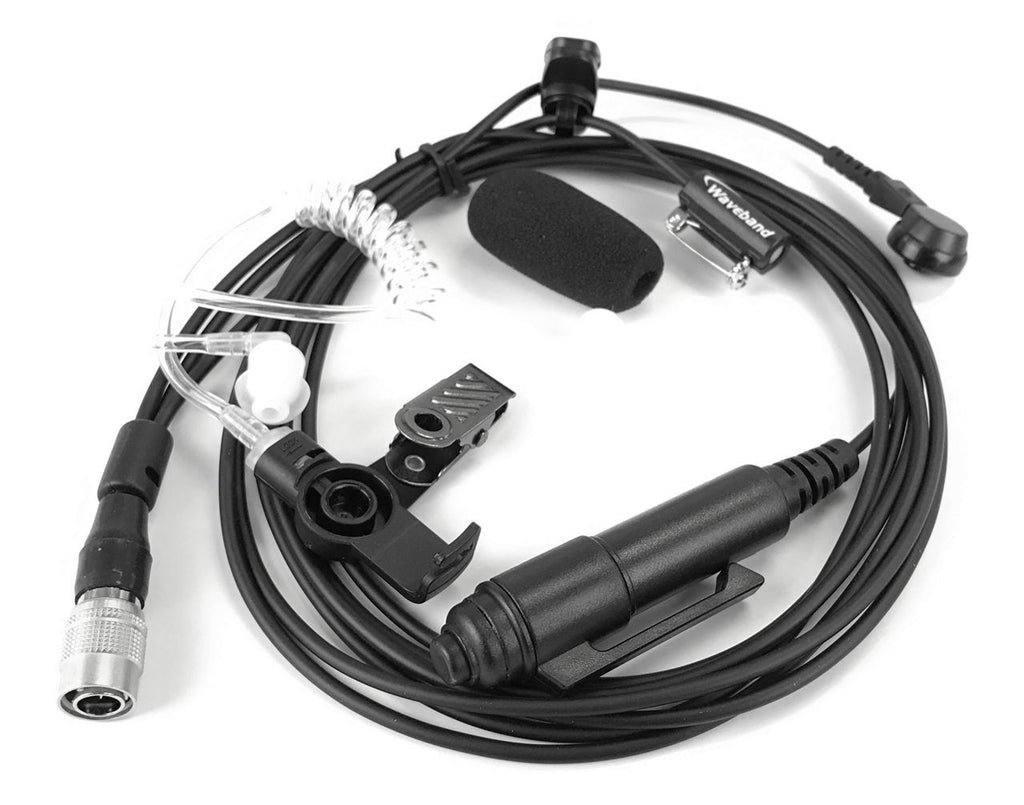

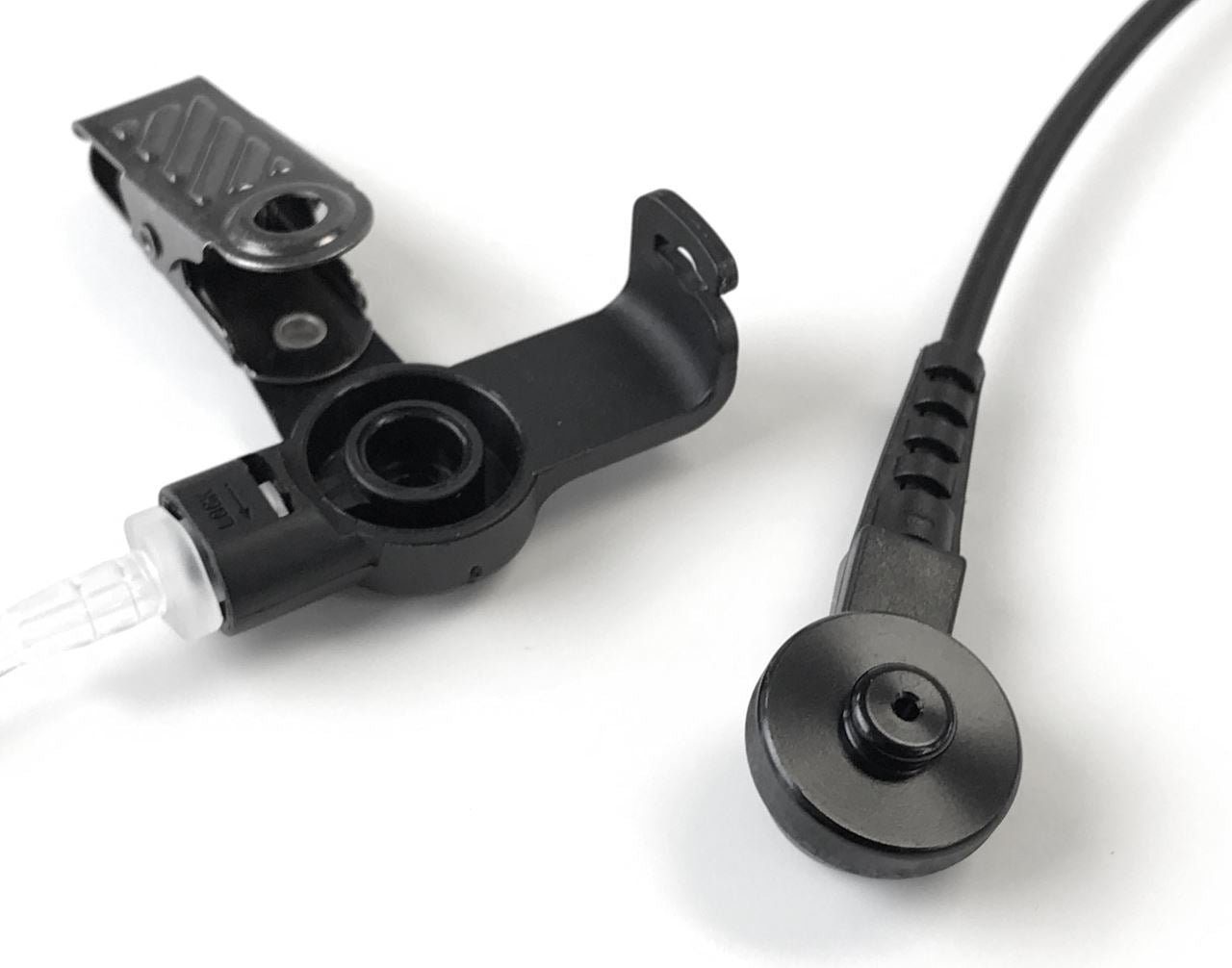

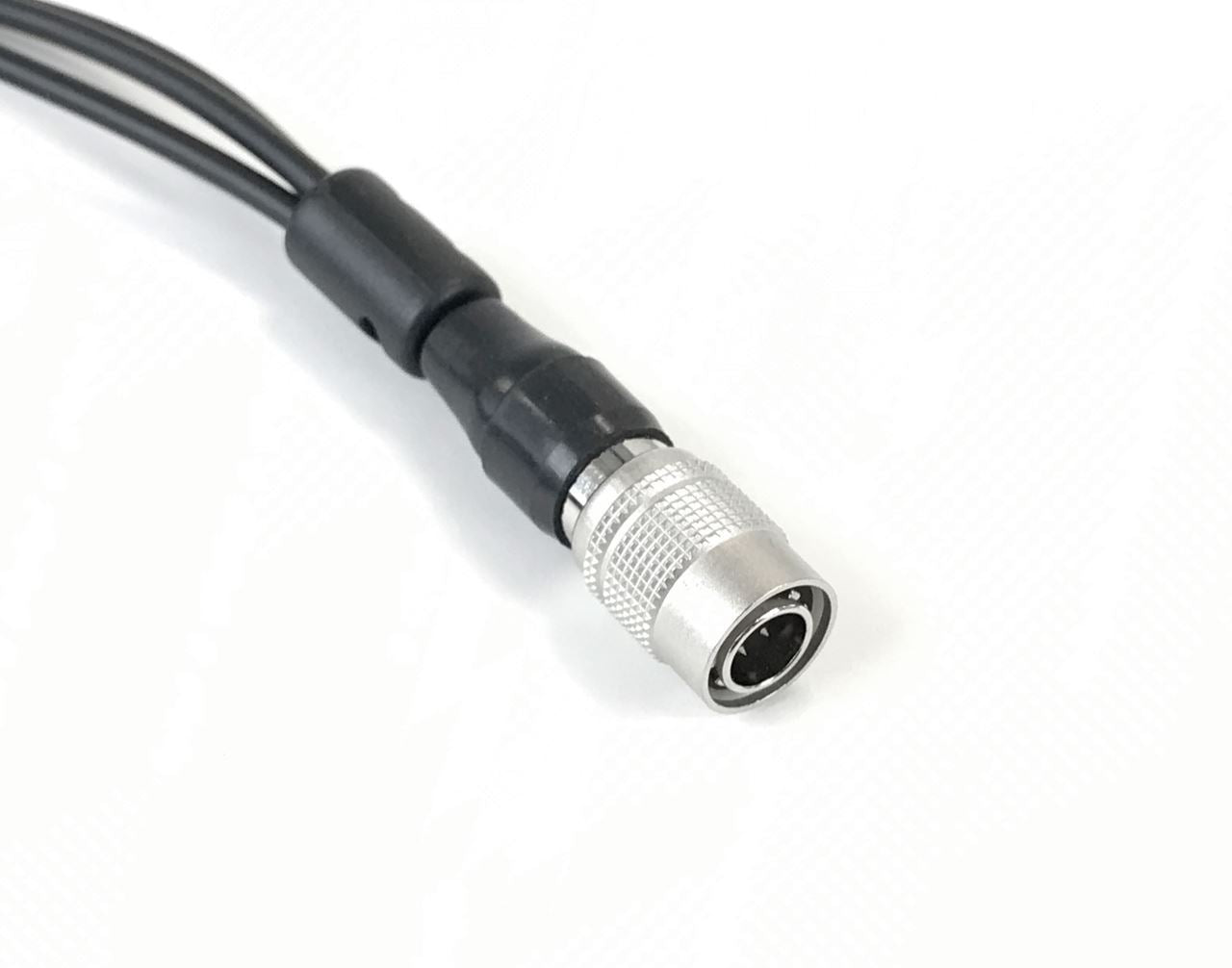

3-Wire black Surveillance Kit discreet communications. For Motorola XTS 3000/5000 Motorola XTS 1500/2500, Motorola HT 1000/MTS2000 & Ef Johnson Series Radios. Features kevlar reinforced cable, premium microphone, quick disconnect clear acoustical tube, ear bud, Hirose connector and barrell style PTT. Ring Style PTT also available upon request. Fully compatible to Motorola ZMMN6031A.
AUDIO LIMITER
Conforms with Occupational Safety and Health Administration (OSHA) regulations. Electronically limits audio to the users ear to a safe maximum of 90dB to prevent hearing damage. Kits also available with volume control to allow users to temporarily exceed 90dB when in louder environments. Most low cost kits far exceed safe audio levels, unknowingly
causing hearing damage.
CABLING
Sheathing: Polyurethane
Cabling: Diameter 4.5mm, Earphone cable 3.0mm
SPEAKER
Impedance: 250 +-50 Ohms
SPL: 97 +-3dB

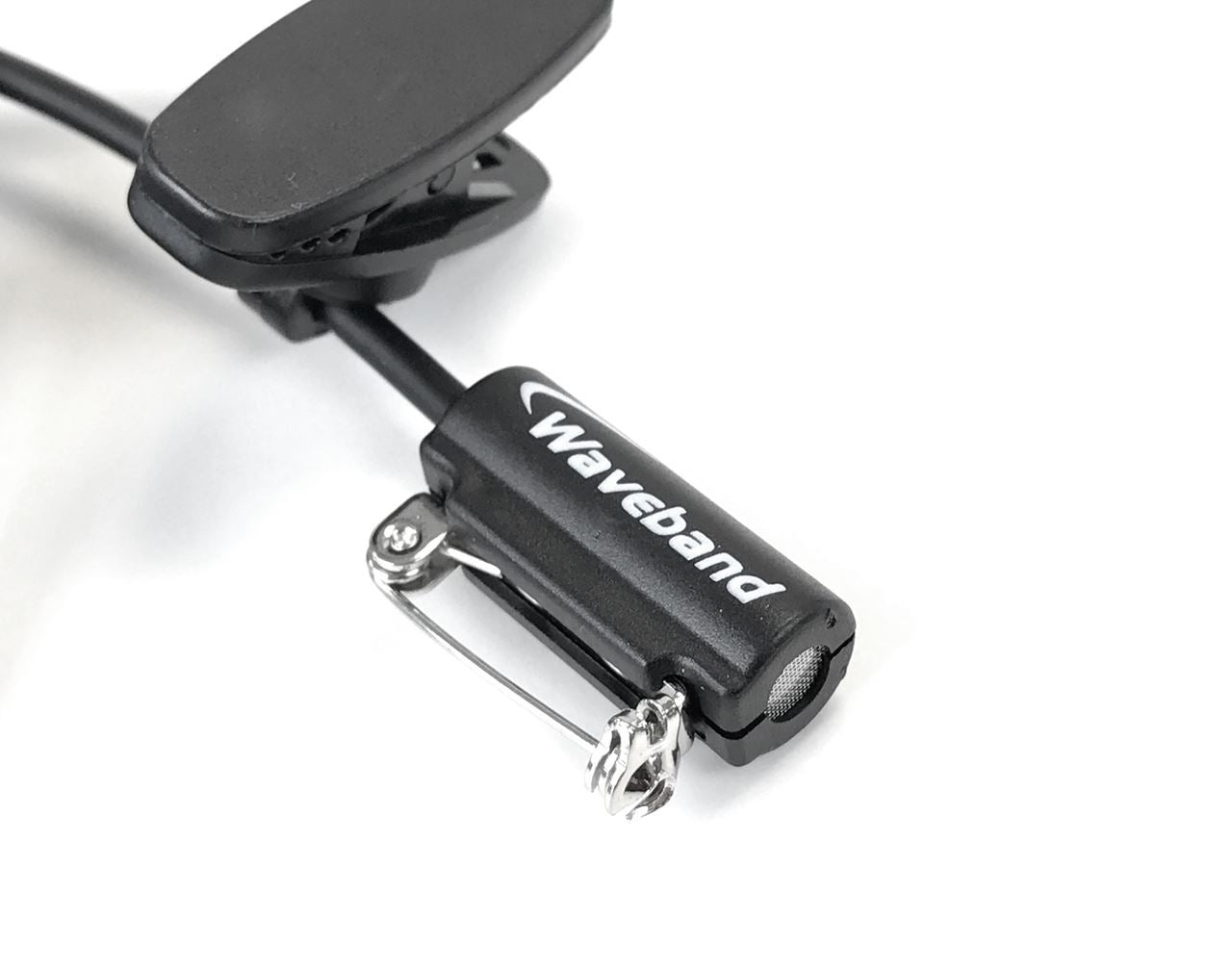

MICROPHONE
Type: Piezoelectric Accelerometer Microphone
Impedance: 250 +- 50 Ohm
Sensitivity: 97 +- 3dB
MECHANICAL
Axial Pull at Microphone: 15lbs
Axial Pull at PTT: 35lbs
Axial Pull at UDC: 35lbs
ENVIRONMENTAL
Operating Temperature: -30 to +75 Celsius
Storage Temperature: -40 to +85 Celsius
RoHS Compliant
Guarantee
12-Months against manufacturer’s defect
Download datasheet
Frequently Asked Questions:
What happens if I can’t hear out of my earpiece?
Most likely, the surveillance kit is not defective. There may be moisture in the acoustic tube causing the transmission to not be heard or heard at a lower volume than before. We suggest cleaning out the removable acoustic tube and trying again. We have a great guide on how to clean your acoustic tube here.
What is the warranty period for surveillance kits?
Warranty for Waveband surveillance kits is 1 year from the date of purchase. This covers any manufacturing defects and workmanship. These defects can include the push to talk button being stuck and earpiece not transmitting or receiving. This warranty does not cover physical damage or abuse.
How long should I wait to replace my acoustic tube? Is it removable?
Due to hygiene factors, earwax, and moisture, acoustic tubes should be replaced every 3-6 months. The acoustic tubes are easily removable from the surveillance kit, allowing for easy replacement. We offer acoustic tube replacements, which you can find here.
